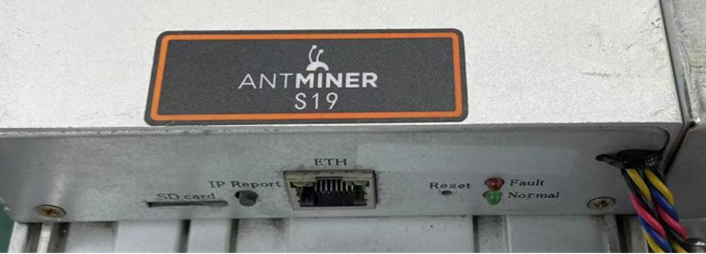

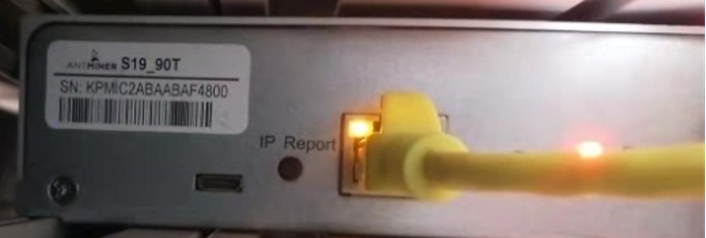

1.The PCB version generally uses the 7007 control board, while the aluminum board version typically uses the A113D control board. The 7007 control board has a slot opening, while the A113D has a micro-USB opening.
2.The hashboard differs as well, and the version is distinguished by this. The PCB version uses the common PCB material, while the aluminum board version uses an aluminum substrate.

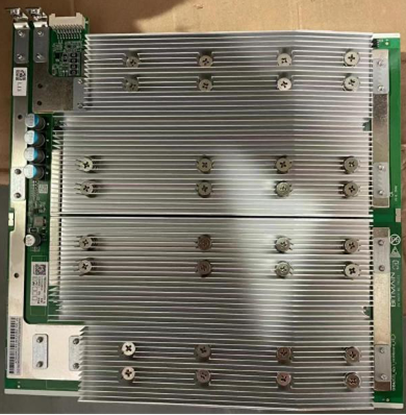

PCB version

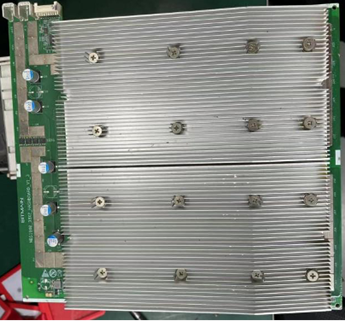

Aluminum board version

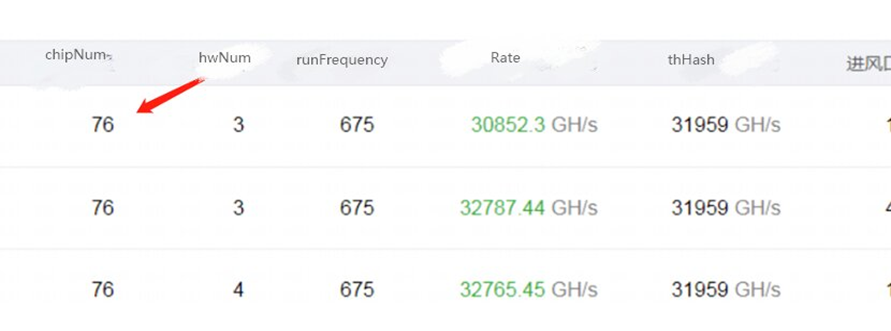

3.The number of chips also varies. The PCB version has 76 chips on a single board, while the aluminum board version has 88 chips.
Note: The above differences are for reference only. Due to updates in mining machine versions, the new versions may not be applicable to the methods mentioned above.
If you have any questions, please feel free to contact BITMAIN Customer Support.
|
