How to remove the hashboard from the all-in-one ANTMINER?

First, remove the cover from the control panel. (Remove the screws according to the figure below, press the round button, and lift the upper cover to remove it.)

After removing the upper cover, remove the fixing screws of the rear fan baffle to remove the rear fan assembly.

(Note*: When disassembling the components, pay attention to the fact that the fan cable is still connected to avoid breaking it.)

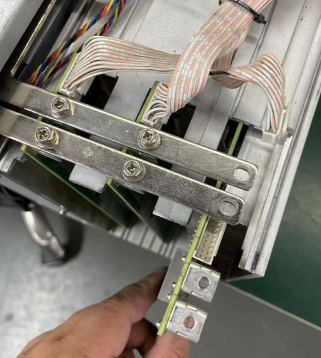

Next, after removing the rear fan assembly, unplug the cable and remove the screws of the hashboard and copper bus.

Finally, pull the hashboard back out

If you have any questions, please feel free to contact BITMAIN Customer Support.
