D3

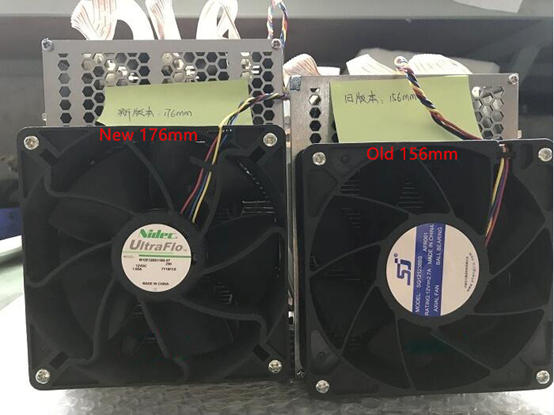

Some D3 miners shipped after November 20 2017 will have larger hashboards. This change was made to better stabilize the miners.
- When creating a repair ticket you can select either version. Make sure you select the correct version so that we can repair and replace with the same version received by us.

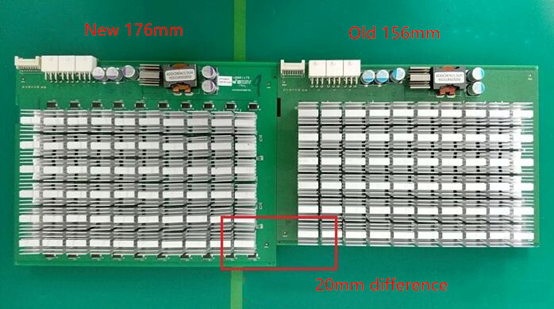

| Hashboards | Dimensions | |
| D3 new version | Hashboard D3 (N), D3_DashBoard_60_V2.21 | 222.6 x 176.6 mm |
| D3 old version | Hashboard D3 (S), D3_DashBoard_60_V1.11 | 222.6 x 156.7 mm |
L3+
The new L3+ version has PCBA and heat sinks which are not the same as the old version.
- When creating a repair ticket you can select either version. Make sure you select the correct version so that we can repair and replace with the same version received by us.

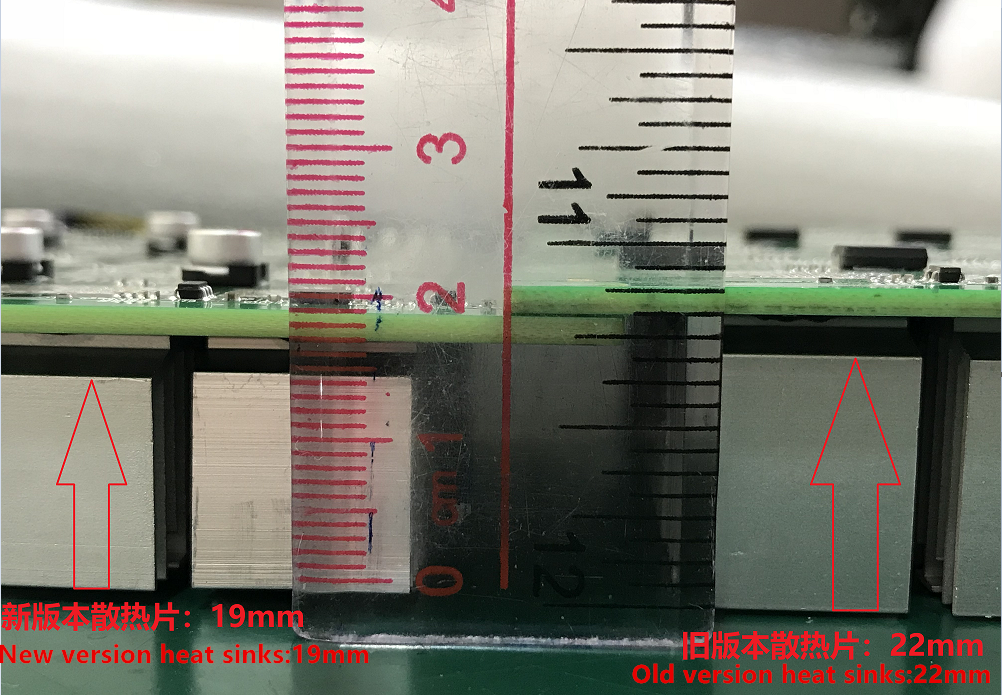

| Heat sinks | Dimensions |
| L3+ new version | 16 x 17.5 x 19 mm |
| L3+ old version | 16 x 17.5 x 22 mm |
T9+
| Hashboards | Details | |
| T9+ new version | Hashboard T9+(N) | Two rows of small capacitors are added to the front of the board |
| T9+ old version | Hashboard T9+(S) | No small capacitors in front of the board |
Should you have any inquiries, feel free to contact us for assistance.
 |
