Specifications and other information of ANTMINER S21 XP in the tables below:
|
Product Glance |
Value |
|
Version |
S21 XP |
|
Model |
10 |
|
Crypto Algorithm/Coins |
SHA256 | BTC/BCH/BSV |
|
Typical hashrate,TH/s(1-1) |
270 |
|
power on wall@25℃(1-2) , Watt (1-1) |
3645 |
|
Power efficiency on wall @25°C(1-2) , J/Ksol(1-1)
|
13.5
|
|
Detailed Characteristics |
Value |
|
Power Supply |
|
|
Power supply AC input voltage(2-1） , Volt |
220~277V AC |
|
Power supply AC Input Frequency Range, Hz |
50~60 |
|
Power supply AC Input current(2-2) , Amp |
20 |
| Adapted AC output power requirement,W |
4000 |
|
Hardware Configuration |
|
|
Network connection mode |
RJ45 Ethernet 10/100M |
|
Server Size (Length*Width*Height, w/o package), mm |
449*219*293 |
|
Server Size (Length*Width*Height, with package), mm |
640*360*450 |
|
Net weight, kg |
18.7 |
|
Gross weight, kg |
21.5 |
| Noise(2-3) ,dBA |
76 |
|
Environment Requirements |
|
|
Operation temperature, °C |
-20~45 |
|
Storage temperature, °C |
-20~70 |
|
Operation humidity(non-condensing), RH |
10~90% |
|
Operation altitude(2-4) , m |
≤2000 |
NOTES:
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values, The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet air temperature.
(2-1) Caution: Wrong input voltage may probably cause server damaged.
(2-2) Single-phase AC input 20A.
(2-3) Max condition: Fan is under max RPM(rotation per minute).
(2-4) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
Performance Curve

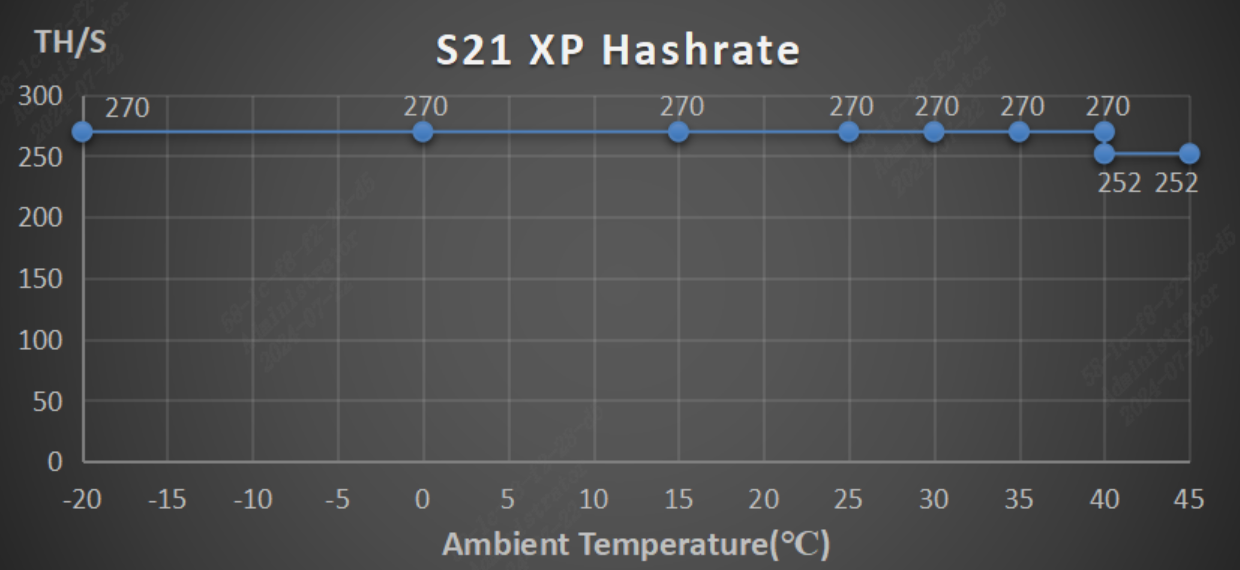

Hashrate vs. Ambient Temperature

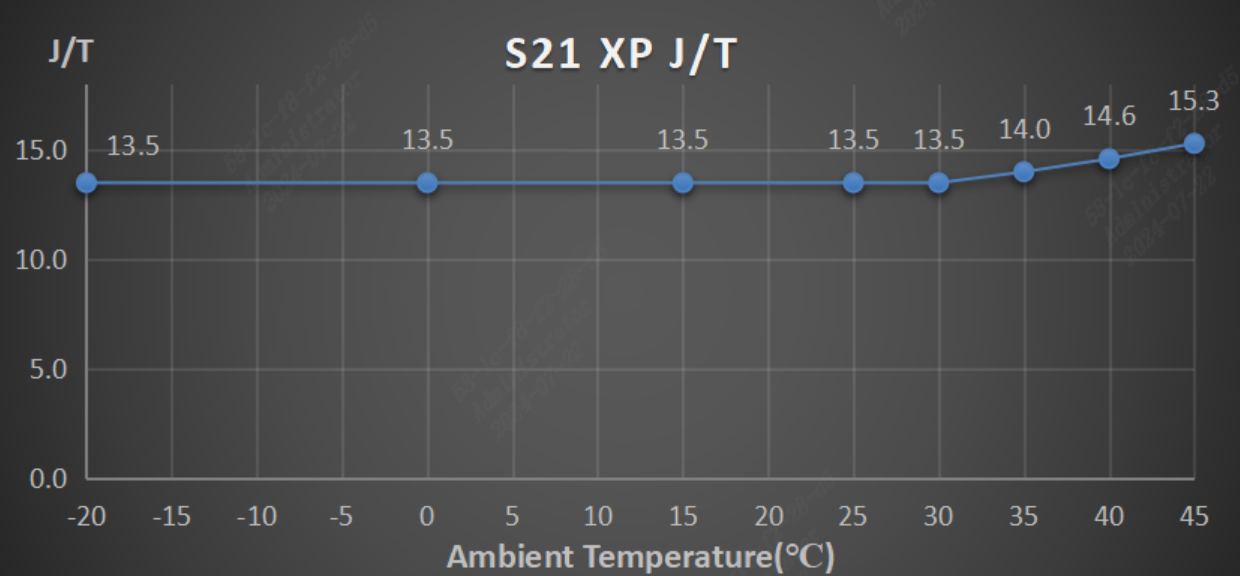

J/T vs. Ambient Temperature
If you have any questions, please feel free to contact BITMAIN Customer Support.
